Norstar | WH Western Deluxe Skirted Truck Bed | Aluminum Trim, 18" Trough, & 4 Toolboxes
The WH Model is Norstar's top-of-the-line bed. The Western Deluxe comes ready to impress with a stunning diamond plate floor, a structural steel frame, and a head-turning standard aluminum trim package. We have put just about every option on this bed except the kitchen sink. Featuring cast housings on the rear lighting, integrated fuel fillers, chrome accented head rack lighting, and brushed stainless steel fenders, this bed is the perfect fit for any single or dual-wheeled work truck. Go to work—in style.
WH Model Sizes & Vehicle Footprints
The WH requires specific sizing based on your truck's generation, rear-wheel configuration, and cab-to-axle (CA) measurements. Note that the WH features slightly tailored deck widths compared to standard beds to accommodate its custom skirting and toolboxes:
84" L x 78" W: Engineered specifically for Single Rear Wheel (SRW) setups replacing factory short beds. Features a 74" Deck Width.
8'6" L x 78" W: Standard 8-foot frame replacements for Single Rear Wheel (SRW) trucks. Features a 74" Deck Width.
8'6" L x 84"/88" W: Wide-deck configuration explicitly designed for Dual Rear Wheel (DRW) standard 1-ton swaps. Features an 80" or 84" Deck Width.
9'4" L x 78"/88" W: Extended length models built as a direct fit for commercial 60" Cab-to-Axle (CA) frames in both SRW and DRW.
Norstar Truck Bed Size & Fitment Guide
Below is the master OEM sizing chart to help match the WH Western Deluxe to your specific chassis runner width and CTA:
| Truck Make & Year | Configuration | Length x Width | Cab To Axle (CTA) | Frame Runners |
|---|---|---|---|---|
| Ford (1998 - 2017) & (2018+) | Single Wheel Short Bed | 84" x 84" | 40" | 38" |
| Ford (1998 - 2017) & (2018+) | Single Wheel Long Bed | 8'6" x 84" | 56" | 38" |
| Ford (1998 - 2017) & (2018+) | Dually | 8'6" x 97" | 56" | 38" |
View Full Truck Fitment Guide (Expand)
| Ford (1998 - 2017) & (2018+) | Cab & Chassis | 9'4" x 94"/97" | 60" | 34" |
| Ford (1998 - 2017) & (2018+) | Cab & Chassis (Extended) | 11'4" x 94"/97" | 84" | 34" |
| GMC / Chevrolet (2001 - Present) | Single Wheel Short Bed | 84" x 84" | 42" | 42" |
| GMC / Chevrolet (2001 - Present) | Single Wheel Long Bed | 8'6" x 84" | 56" | 42" |
| GMC / Chevrolet (2001 - Present) | Dually | 8'6" x 97" | 56" | 42" |
| GMC / Chevrolet (2001 - Present) | Cab & Chassis | 9'4" x 94"/97" | 60" | 34" |
| GMC / Chevrolet (2001 - Present) | Cab & Chassis (Extended) | 11'4" x 94"/97" | 84" | 34" |
| Dodge / RAM (2003 - Present) | Single Wheel Short Bed | 84" x 84" | 38" | 42" |
| Dodge / RAM (2003 - Present) | Single Wheel Long Bed | 8'6" x 84" | 58" | 42" |
| Dodge / RAM (2003 - Present) | Megacab (Single Wheel) | 84" x 84" | 38" | 42" |
| Dodge / RAM (2003 - Present) | Megacab (Dually) | 84" x 97" | 38" | 42" |
| Dodge / RAM (2003 - Present) | Dually | 8'6" x 97" | 58" | 42" |
| Dodge / RAM (2003 - Present) | Cab & Chassis | 9'4" x 94"/97" | 60" | 34" |
| Dodge / RAM (2003 - Present) | Cab & Chassis (Extended) | 11'4" x 94"/97" | 84" | 34" |
The Structural Backbone: Built for Heavy Hauling
While the WH model looks like a show-truck bed, it is built on a massive foundation. The chassis runs on formed 3" x 3/16" channel cross-members. The body is constructed from durable 11-gauge steel with a heavier 10-gauge skirted bumper. It is capped with a rugged 1/8" diamond plate steel floor deck, ensuring it can handle dropping pallets and heavy equipment without breaking a sweat.
Comprehensive Standard Features
The WH arrives fully loaded with elite aesthetics and heavy-duty towing hardware straight from the factory.
- Elite Towing Setup: Built-in Gooseneck Well housing a 30k Rated 2 5/16” GN Ball, surrounded by an 18" Gooseneck Trough and 4 Recessed D-Rings. The rear features a Dove Tail profile and a lab-tested 2.5” 18.5k Rated Bumper Receiver.

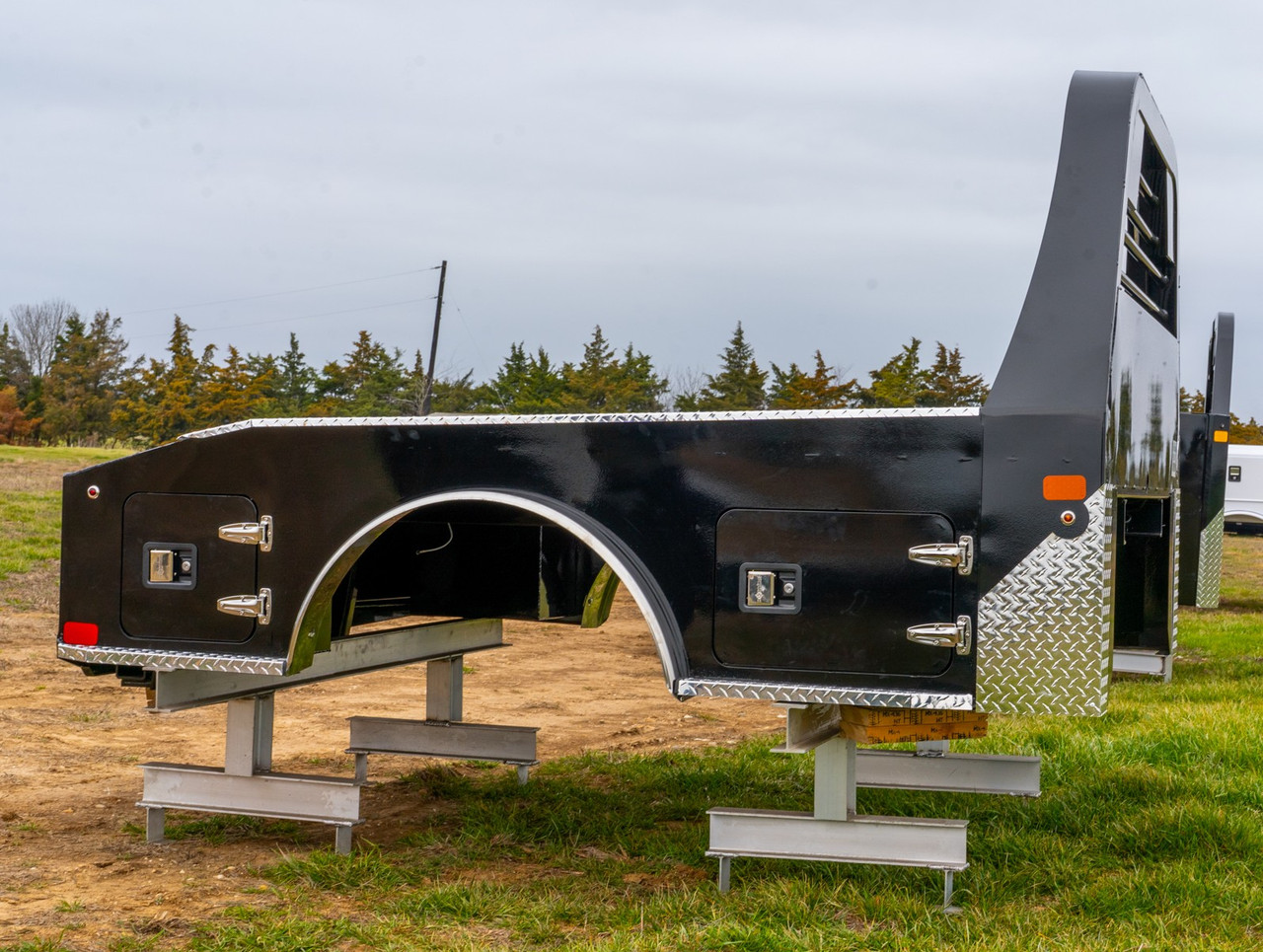

- Storage & Hardware: 4 Side Swing Tool Box Doors equipped with Chrome Hinges (Except Megacab).

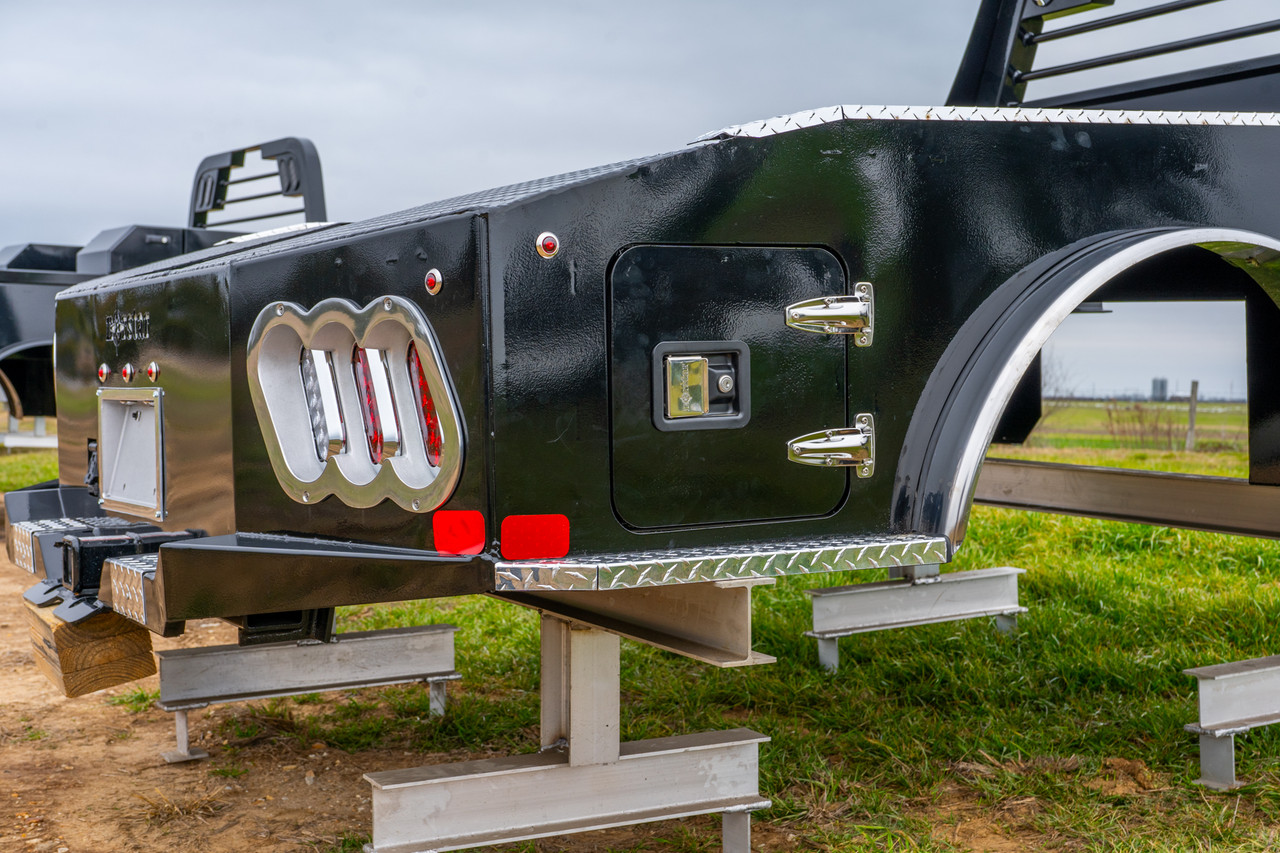

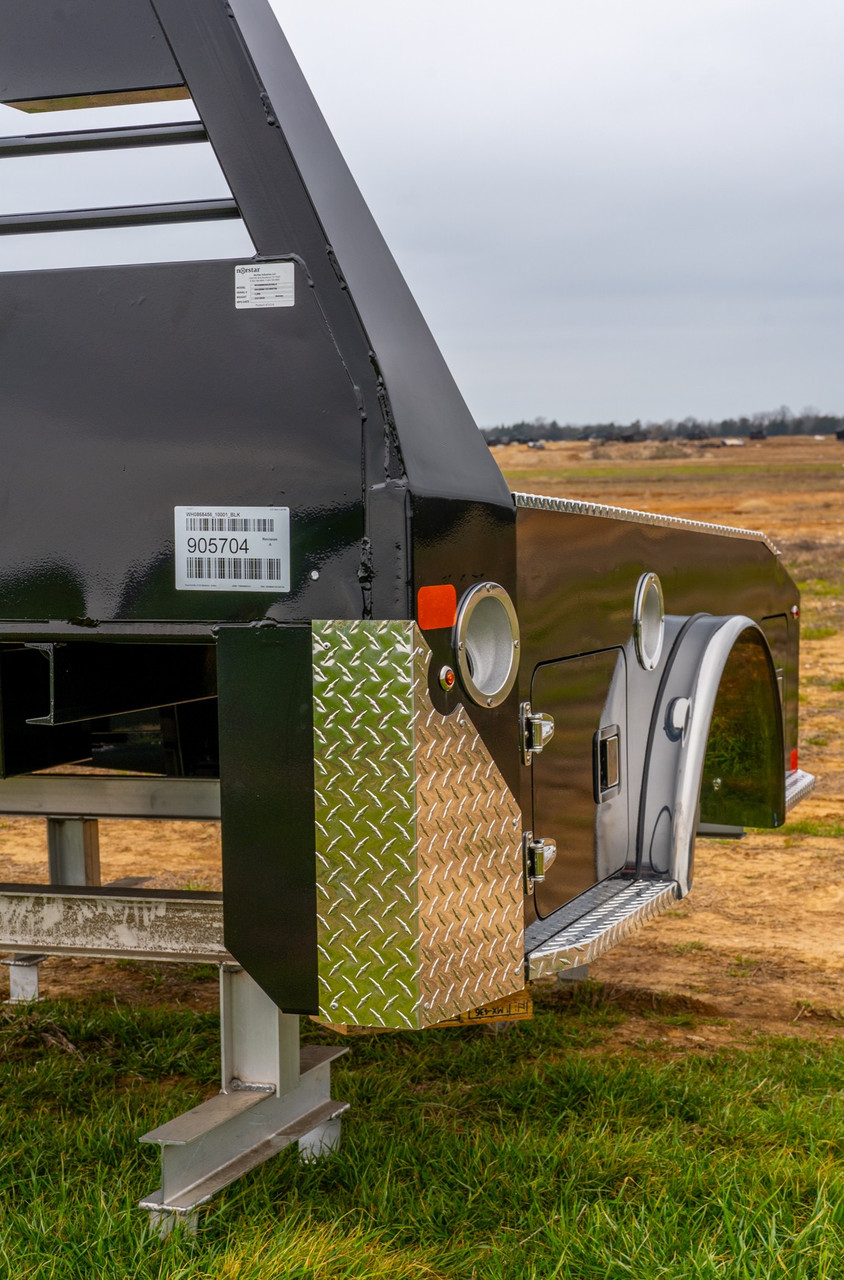

- Premium Western Deluxe Aesthetics: Aluminum Trim Package, Brushed Stainless Steel Fenders, 2 Aluminum Cast Angled Fuel Fillers, Aluminum Cast Tail Light Housings, and an Aluminum Cast License Plate Housing.

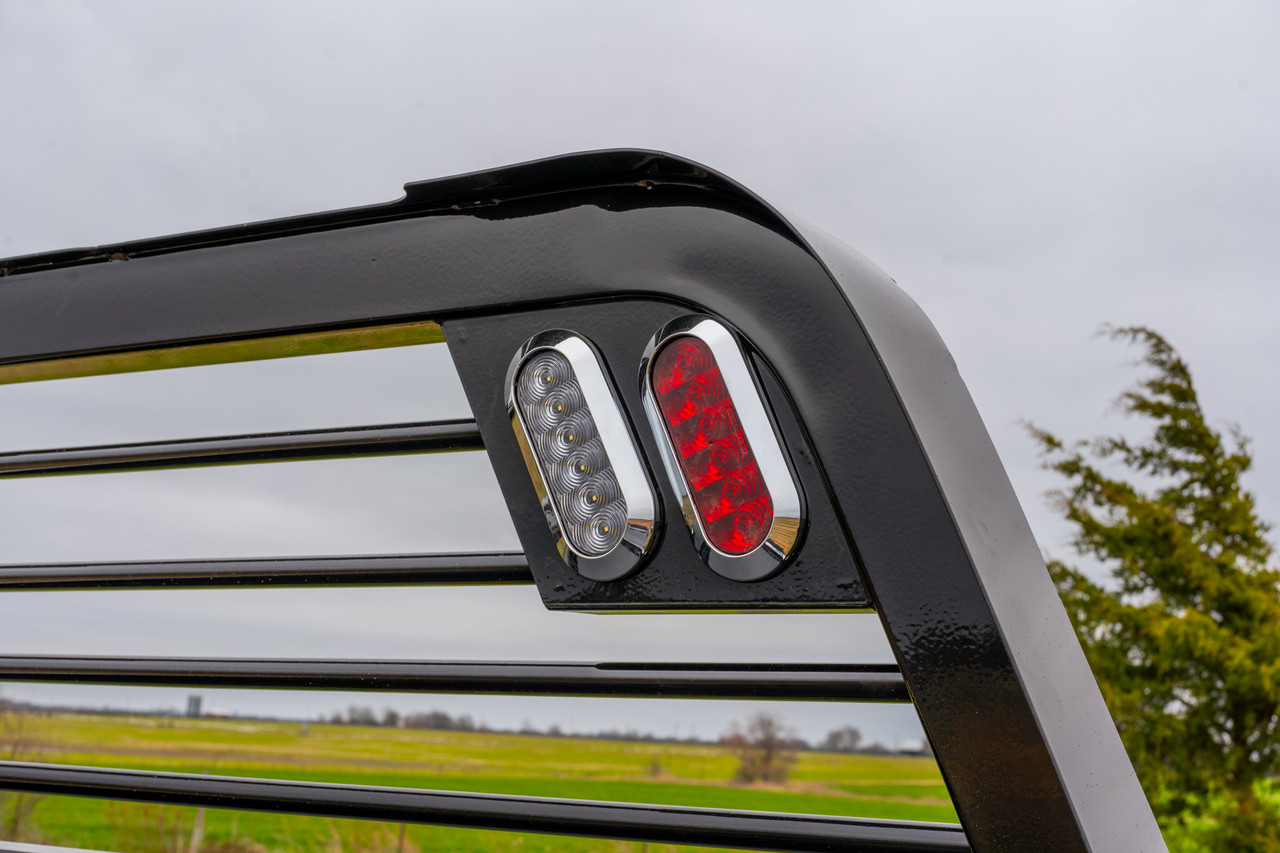

- Upgraded LED Lighting: Steel Tube Head Rack with Cross Bars, Chrome Accent Lighting, Tail & Reverse Lights. The rear includes 4 Clear 6” Oval LED Reverse Lights and 6 Red 6” Oval LED ST/TL/TN Lights. All lighting is DOT approved.
- Electrical & Accessories: Molded Sealed Harness with Resistors, 4/5 & 7 Way Receiver Female Plug with Adapter, and a 7-Way Plug located directly in the Gooseneck Trough. Skirted Rear Bumper with Anti-Slip Step and Mudflap Brackets.
- Finish: Fully Primed and Powder Coated in Gloss Black.
Available Options & Upgrades
Personalize your Norstar WH Western Deluxe with these premium factory options:
- B&W Turnover Ball (U06): Replaces the standard gooseneck setup (Note: Selecting this option eliminates the 18" gooseneck trough).
- All Blackout Package (C05): For a sleek, stealthy, monochromatic appearance.
- Custom Finishes: Optional White Zinc Powder Coat or Diamond White Paint (DWT).
- Body Options: Extend Head Rack From Standard Height.
⚠️ Professional In-House Installation
Modern trucks feature highly complex safety and powertrain systems that directly impact upfit requirements. We offer full in-house installation services Monday - Friday in our dedicated service bays.
Whether you require the relocation of factory backup cameras, integration of parking proximity sensors into the rear bumper, or clean routing of Dual-Fuel and DEF tank necks into the WH's cast aluminum fillers, our technicians ensure your vehicle's systems remain fully operational. Contact our sales staff for an exact quote based on your specific truck make and model year.
Visit Riverside Boot and Saddle in Blackfoot, ID Today
Go to work in style and transform your pickup into a heavy-duty commercial asset. Stop by our lot at 742 ID-39 in Blackfoot, ID, serving the Idaho Falls, Pocatello, and Rexburg communities. Call our flatbed and upfitting experts today at 208-684-4328 to verify inventory, confirm your truck's CTA measurements, and build the perfect Norstar WH Western Deluxe Truck Bed for your rig!
*Installations are only offered in our facilities. Flatbeds and installation labor are subject to Idaho sales tax. Weights and specifications are approximate and subject to change depending on options.
Product Specifications
Warranty Information
Norstar Truck Beds & Flatbeds Factory Warranty
When you invest in a Norstar truck bed, you are backed by one of the most reliable warranties in the commercial industry. The following coverage applies to new Norstar flatbeds:
- 3-Year Structural Limited Warranty: Covers structural defects on parts manufactured by Norstar, including the main frame, subframe, crossmembers, and railings.
- 2-Year Comprehensive Limited Warranty: Covers defects in materials, components, and workmanship.
- 1-Year Paint Finish Warranty: Under the comprehensive warranty, the paint finish is warranted against peeling and cracking.
- Third-Party Components: Any individual components not manufactured directly by Norstar are covered by the warranties provided by their respective original manufacturers.
*To activate this coverage, products must be registered online with the manufacturer within 30 days of the original retail purchase.
