Product Description
Bradford Built | Cattleman Flatbed | Deep Skirting, Bolt-On Headache Rack, & 3-Year Paint Warranty
The Bradford Built Cattleman is your one-stop shop for a classic, heavy-duty truck bed with a modern twist. Known for its deeper skirting that gives the bed a highly refined, 'finished' look, the Cattleman delivers elite deck space load-handling versatility for ranching and commercial operations. Packed with standard features like a sealed wiring harness, full LED lighting, and premium towing hardware, it is an incredibly effective and stylish upgrade for your work truck.
Available Flatbed Sizes & Vehicle Footprints
Flatbeds must be carefully sized based on single vs. dual rear wheel chassis capacity to ensure perfect wheel-well flare clearance and turning radii:
7' (84") W x 7' L: Engineered specifically for Single Rear Wheel (SRW) setups replacing factory short beds.
7' (84") W x 8.5' L: Standard 8-foot frame replacements for Single Rear Wheel (SRW) trucks.
8' (96") W x 8.5' L: Wide-deck configuration explicitly designed for Dual Rear Wheel (DRW) standard 1-ton swaps.
8' (96") W x 9.25' L / 11.3' L: Extended length models built as a direct fit for commercial 60" and 84" Cab-to-Axle (CA) frames.
Bradford Built Truck Bed Size & Fitment Guide
Below is the master sizing chart to match the Cattleman flatbed to your specific chassis runner width and CTA:
| Truck Make & Year | Configuration | Length x Width | Cab To Axle (CTA) | Frame Runners |
|---|---|---|---|---|
| Ford (1998 - 2017) & (2018+) | Single Wheel Short Bed | 84" x 84" | 40" | 38" |
| Ford (1998 - 2017) & (2018+) | Single Wheel Long Bed | 8'6" x 84" | 56" | 38" |
| Ford (1998 - 2017) & (2018+) | Dually | 8'6" x 97" | 56" | 38" |
View Full Truck Fitment Guide (Expand)
| Ford (1998 - 2017) & (2018+) | Cab & Chassis | 9'4" x 94"/97" | 60" | 34" |
| Ford (1998 - 2017) & (2018+) | Cab & Chassis (Extended) | 11'4" x 94"/97" | 84" | 34" |
| GMC / Chevrolet (2001 - Present) | Single Wheel Short Bed | 84" x 84" | 42" | 42" |
| GMC / Chevrolet (2001 - Present) | Single Wheel Long Bed | 8'6" x 84" | 56" | 42" |
| GMC / Chevrolet (2001 - Present) | Dually | 8'6" x 97" | 56" | 42" |
| GMC / Chevrolet (2001 - Present) | Cab & Chassis | 9'4" x 94"/97" | 60" | 34" |
| GMC / Chevrolet (2001 - Present) | Cab & Chassis (Extended) | 11'4" x 94"/97" | 84" | 34" |
| Dodge / RAM (2003 - Present) | Single Wheel Short Bed | 84" x 84" | 38" | 42" |
| Dodge / RAM (2003 - Present) | Single Wheel Long Bed | 8'6" x 84" | 58" | 42" |
| Dodge / RAM (2003 - Present) | Megacab (Single Wheel) | 84" x 84" | 38" | 42" |
| Dodge / RAM (2003 - Present) | Megacab (Dually) | 84" x 97" | 38" | 42" |
| Dodge / RAM (2003 - Present) | Dually | 8'6" x 97" | 58" | 42" |
| Dodge / RAM (2003 - Present) | Cab & Chassis | 9'4" x 94"/97" | 60" | 34" |
| Dodge / RAM (2003 - Present) | Cab & Chassis (Extended) | 11'4" x 94"/97" | 84" | 34" |
The Structural Backbone: Rigorous 4-Step Finish
Bradford Built ensures their steel beds stand the test of time and severe weather. Every steel Cattleman bed is put through a rigorous 4-step paint process that includes blast media cleaning, an acid etching wash, a high-quality primer, and a thick powder-coat top layer. This meticulous process provides incredible rust resistance and allows Bradford Built to back the Cattleman with an industry-leading 3-year paint warranty.
Comprehensive Standard Features
- Elite Towing Setup: Arrives factory-equipped with a 30,000 lb. rated Gooseneck Hitch and a 24,000 lb. Tow / 1,800 lb. tongue weight rated Class V receiver hitch. (Note: Drop or pintle hitches may alter specific capacities).

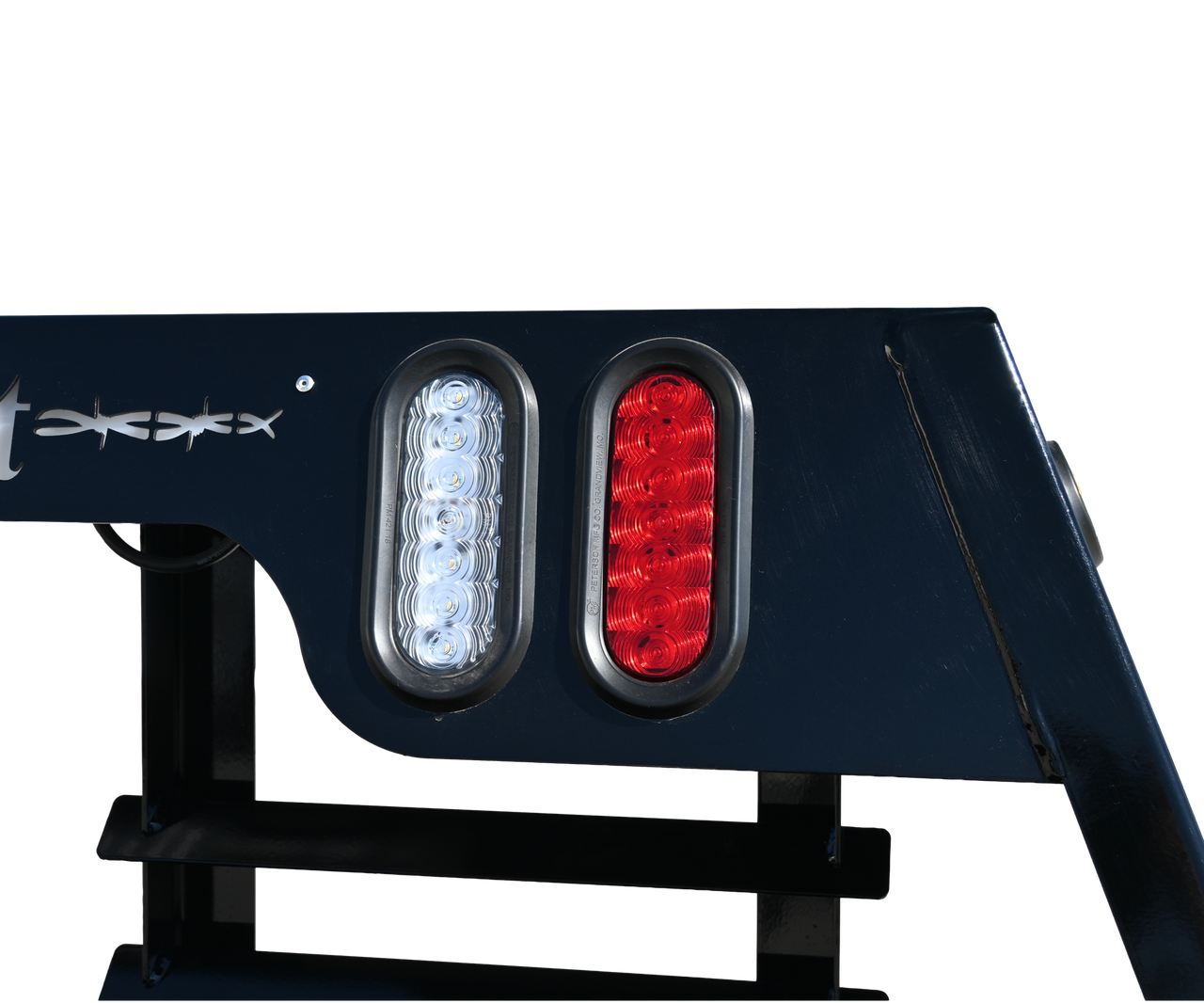

- Formed Headache Rack: The signature Bradford Built formed headache rack features a new bolt-on design for a better paint finish and easy replacement in case of damage. It comes standard with integrated LED stop, reverse, and side marker lights.
- Cargo Securing: Outfitted with 3/8" x 2.5" thick outer Rub Rails and strategically placed Stake Pockets, making tying down large loads and equipment a breeze.
- Enhanced Body Styling: Deeper skirting gives the bed a more 'finished' and streamlined look on your truck chassis.
- Electrical & Accessories: Standard fuel hookup routing, full LED lighting all around, heavy-duty mudflaps, and a fully sealed wiring harness to prevent electrical shorts in wet conditions.
Available Options & Upgrades
Transform the Cattleman into a highly organized service platform with optional factory upgrades:
- Underbody Toolboxes: Mount securely below the deck to keep chains, straps, and tools out of the weather.
- Crossbody Toolboxes: Maximize secure gear storage directly behind the headache rack while retaining full use of the gooseneck hitch.
⚠️ Professional In-House Installation
Modern trucks feature highly complex safety and powertrain systems that directly impact upfit requirements. We offer full in-house installation services Monday - Friday in our dedicated service bays.
Whether you require the relocation of factory backup cameras, integration of parking proximity sensors into the rear skirt, or clean routing of Dual-Fuel and DEF tank necks, our technicians ensure your vehicle's systems remain fully operational. Contact our sales staff for an exact quote based on your specific truck make and model year.
Visit Riverside Boot and Saddle in Blackfoot, ID Today
Transform your pickup into a heavy-duty commercial asset. We stock multiple sizes and configurations to get your truck back on the road and working hard. Stop by our lot at 742 ID-39 in Blackfoot, ID, serving the Idaho Falls, Pocatello, and Rexburg communities. Call our flatbed and upfitting experts today at 208-684-4328 to verify inventory, confirm your truck's CTA measurements, and build the perfect Bradford Built Cattleman flatbed for your fleet!
*Installations are only offered in our facilities. Flatbeds and installation labor are subject to Idaho sales tax. Weights and specifications are approximate and subject to change depending on options.
