Product Description
Bradford Built | Steel Workbed | 4" Flip-Down Rails, Extended Skirting, & 3-Year Paint Warranty

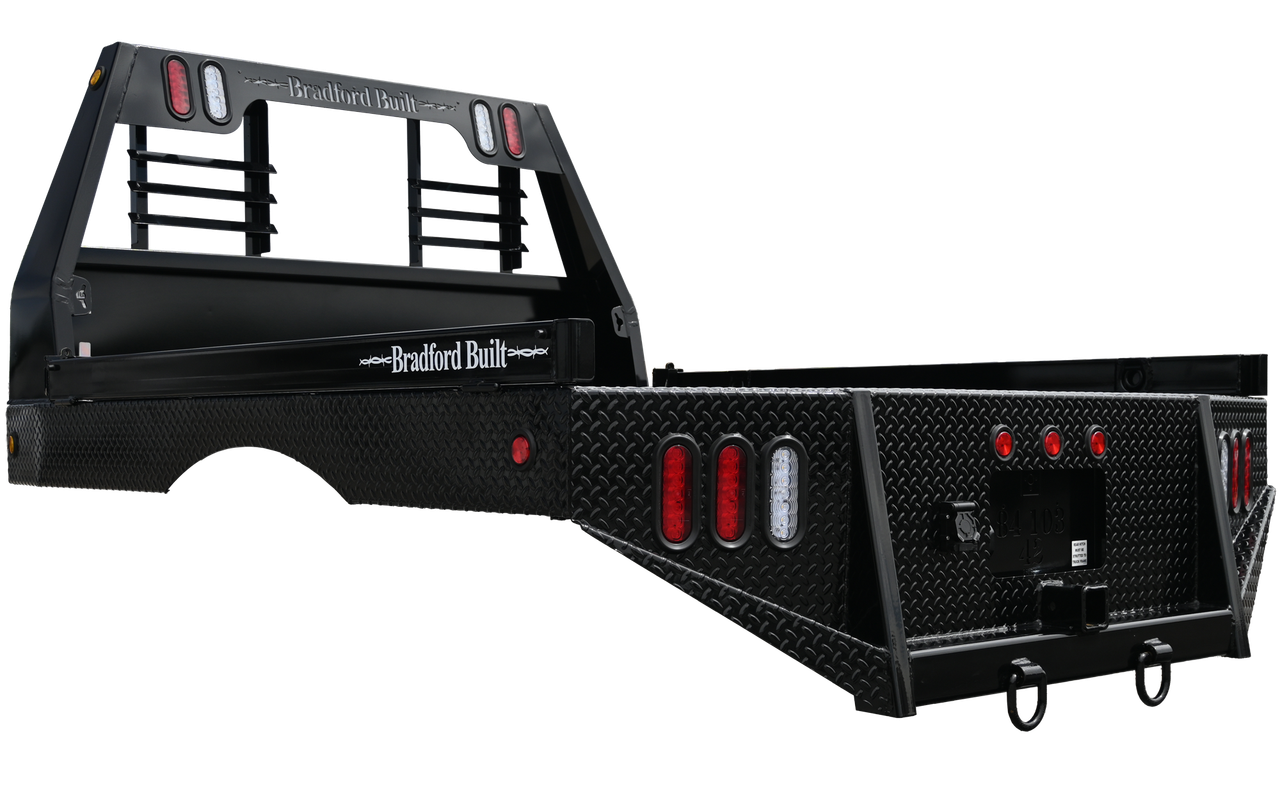

The Bradford Built Steel Workbed is the classic truck bed that started it all. Featuring signature 4" hinged flip-down side rails, this bed provides the ultimate versatility to instantly convert from a secure cargo box into a wide-open flat deck. With its extended skirting, formed headache rack, and rigorous 4-step paint finish, the Steel Workbed is a highly effective, premium upgrade for field mechanics, ranchers, and construction crews across the Eastern Idaho.
Available Flatbed Sizes & Vehicle Footprints
Flatbeds must be carefully sized based on single vs. dual rear wheel chassis capacity to ensure perfect wheel-well flare clearance and turning radii:
7' (84") W x 7' L: Engineered specifically for Single Rear Wheel (SRW) setups replacing factory short beds.
7' (84") W x 8.5' L: Standard 8-foot frame replacements for Single Rear Wheel (SRW) trucks.
8' (96") W x 8.5' L: Wide-deck configuration explicitly designed for Dual Rear Wheel (DRW) standard 1-ton swaps.
8' (96") W x 9.25' L / 11.3' L: Extended length models built as a direct fit for commercial 60" and 84" Cab-to-Axle (CA) frames.
Bradford Built Truck Bed Size & Fitment Guide
Below is the master sizing chart to match the Steel Workbed to your specific chassis runner width and CTA:
| Truck Make & Year | Configuration | Length x Width | Cab To Axle (CTA) | Frame Runners |
|---|---|---|---|---|
| Ford (1998 - 2017) & (2018+) | Single Wheel Short Bed | 84" x 84" | 40" | 38" |
| Ford (1998 - 2017) & (2018+) | Single Wheel Long Bed | 8'6" x 84" | 56" | 38" |
| Ford (1998 - 2017) & (2018+) | Dually | 8'6" x 97" | 56" | 38" |
View Full Truck Fitment Guide (Expand)
| Ford (1998 - 2017) & (2018+) | Cab & Chassis | 9'4" x 94"/97" | 60" | 34" |
| Ford (1998 - 2017) & (2018+) | Cab & Chassis (Extended) | 11'4" x 94"/97" | 84" | 34" |
| GMC / Chevrolet (2001 - Present) | Single Wheel Short Bed | 84" x 84" | 42" | 42" |
| GMC / Chevrolet (2001 - Present) | Single Wheel Long Bed | 8'6" x 84" | 56" | 42" |
| GMC / Chevrolet (2001 - Present) | Dually | 8'6" x 97" | 56" | 42" |
| GMC / Chevrolet (2001 - Present) | Cab & Chassis | 9'4" x 94"/97" | 60" | 34" |
| GMC / Chevrolet (2001 - Present) | Cab & Chassis (Extended) | 11'4" x 94"/97" | 84" | 34" |
| Dodge / RAM (2003 - Present) | Single Wheel Short Bed | 84" x 84" | 38" | 42" |
| Dodge / RAM (2003 - Present) | Single Wheel Long Bed | 8'6" x 84" | 58" | 42" |
| Dodge / RAM (2003 - Present) | Megacab (Single Wheel) | 84" x 84" | 38" | 42" |
| Dodge / RAM (2003 - Present) | Megacab (Dually) | 84" x 97" | 38" | 42" |
| Dodge / RAM (2003 - Present) | Dually | 8'6" x 97" | 58" | 42" |
| Dodge / RAM (2003 - Present) | Cab & Chassis | 9'4" x 94"/97" | 60" | 34" |
| Dodge / RAM (2003 - Present) | Cab & Chassis (Extended) | 11'4" x 94"/97" | 84" | 34" |
The Structural Backbone: Rigorous 4-Step Finish

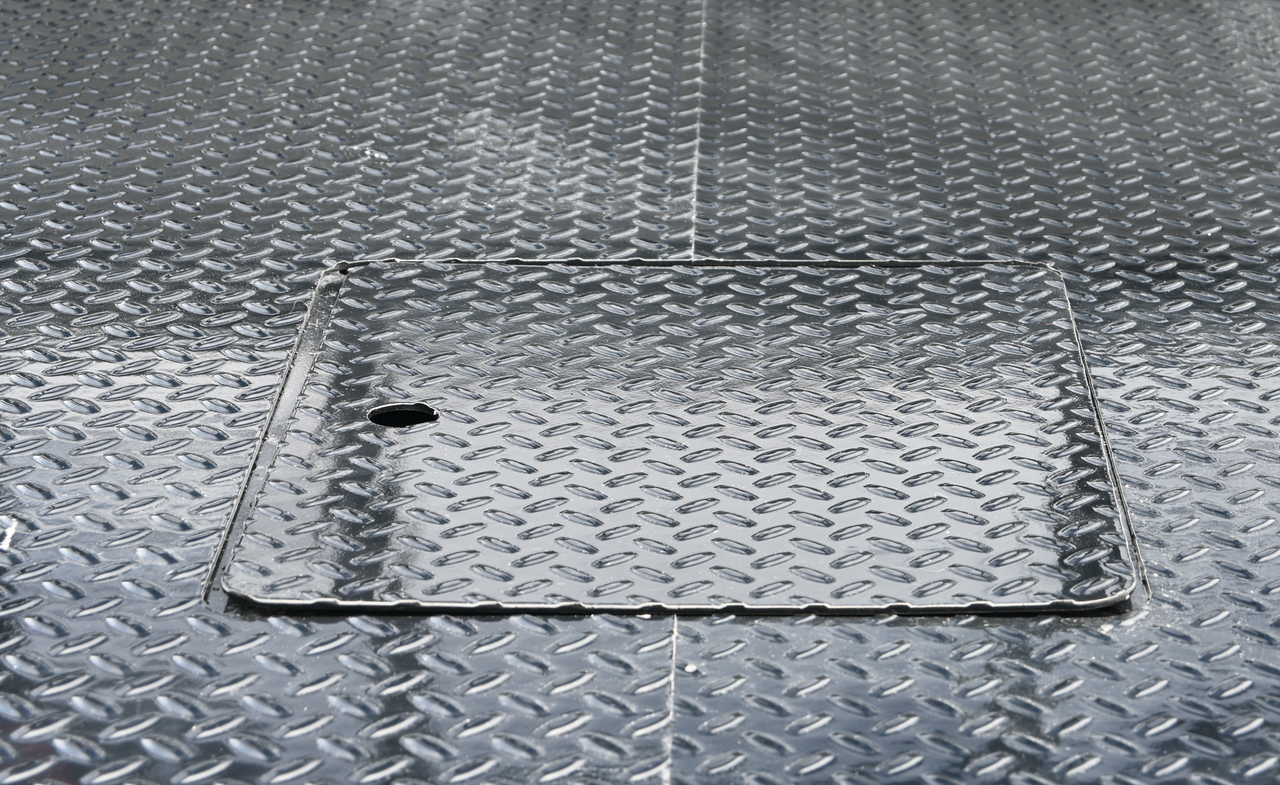

Bradford Built ensures their steel beds stand the test of time and severe weather. Every Steel Workbed is fabricated using premium 1/8” thick tread plate steel featuring built-in tapered rear corners to guarantee maximum turning clearance for close-coupled trailers. It is then put through a rigorous 4-step paint process that includes blast media cleaning, an acid etching wash, a high-quality primer, and a thick powder-coat top layer. This meticulous process provides incredible rust resistance and allows Bradford Built to back the Workbed with an industry-leading 3-year paint warranty.
Comprehensive Standard Features

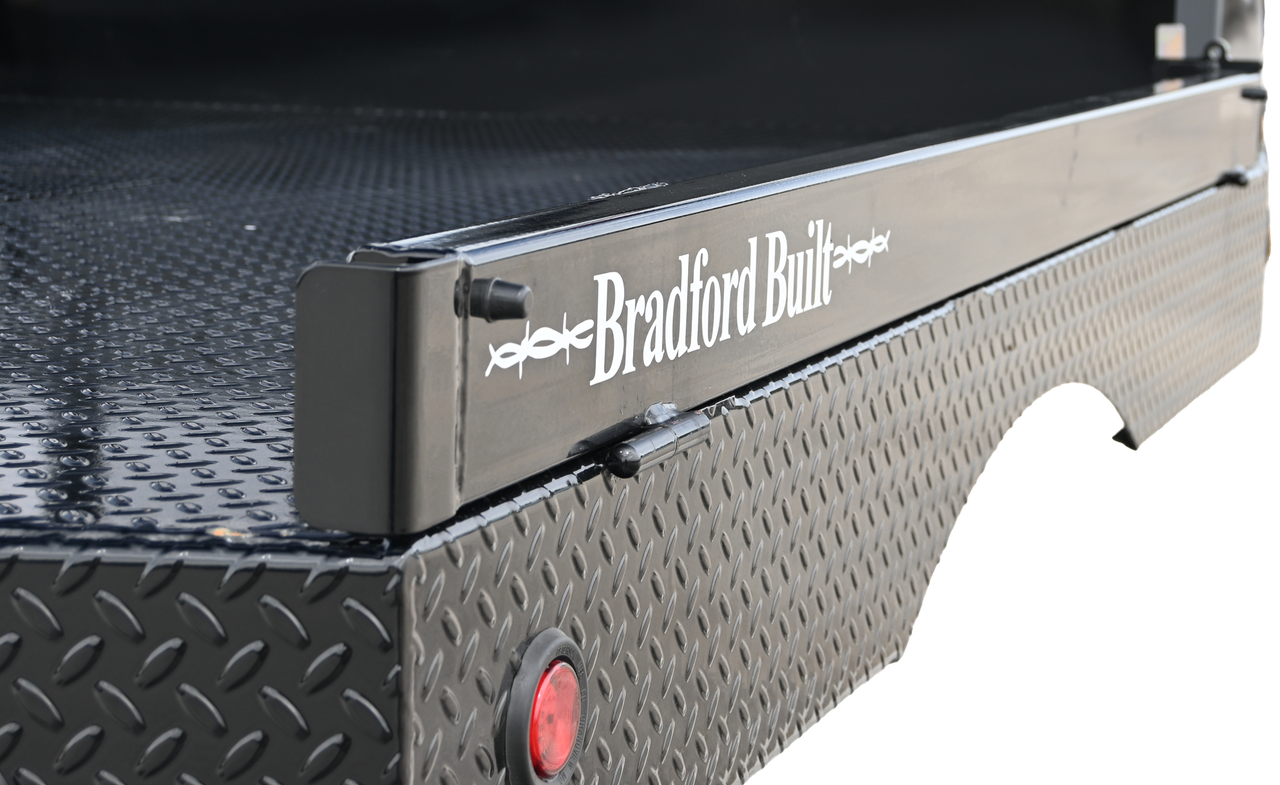

- 4" Flip Down Rails: Most models come standard with 4" hinged siderails for instant flat-deck conversion. These rails have brackets at the front and back for a lumber tailgate and feature at least two flush-mounted tie-down rings for securing loads.
- Elite Towing Setup: Arrives factory-equipped with a 30,000 lb. rated Gooseneck Hitch and a 24,000 lb. Tow / 1,800 lb. tongue weight rated Class V receiver hitch. (Note: Drop or pintle hitches may alter specific capacities).

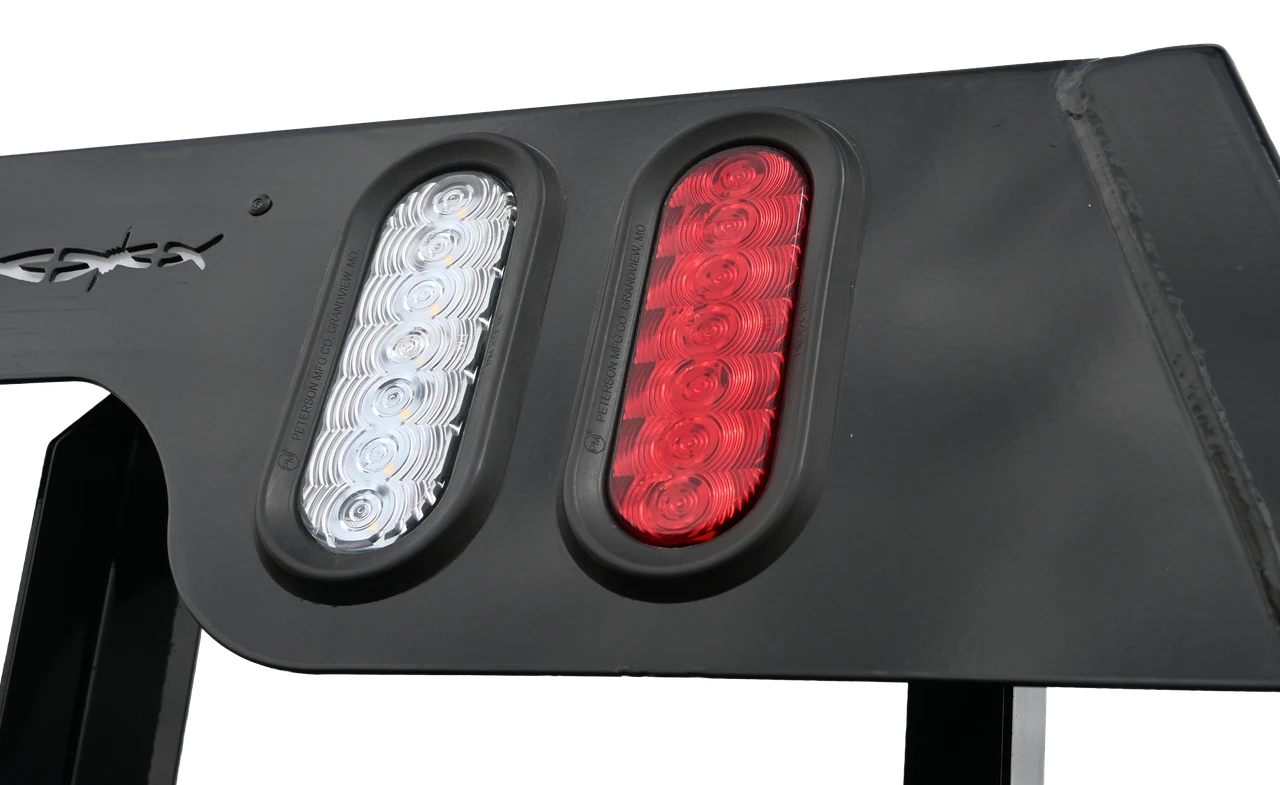

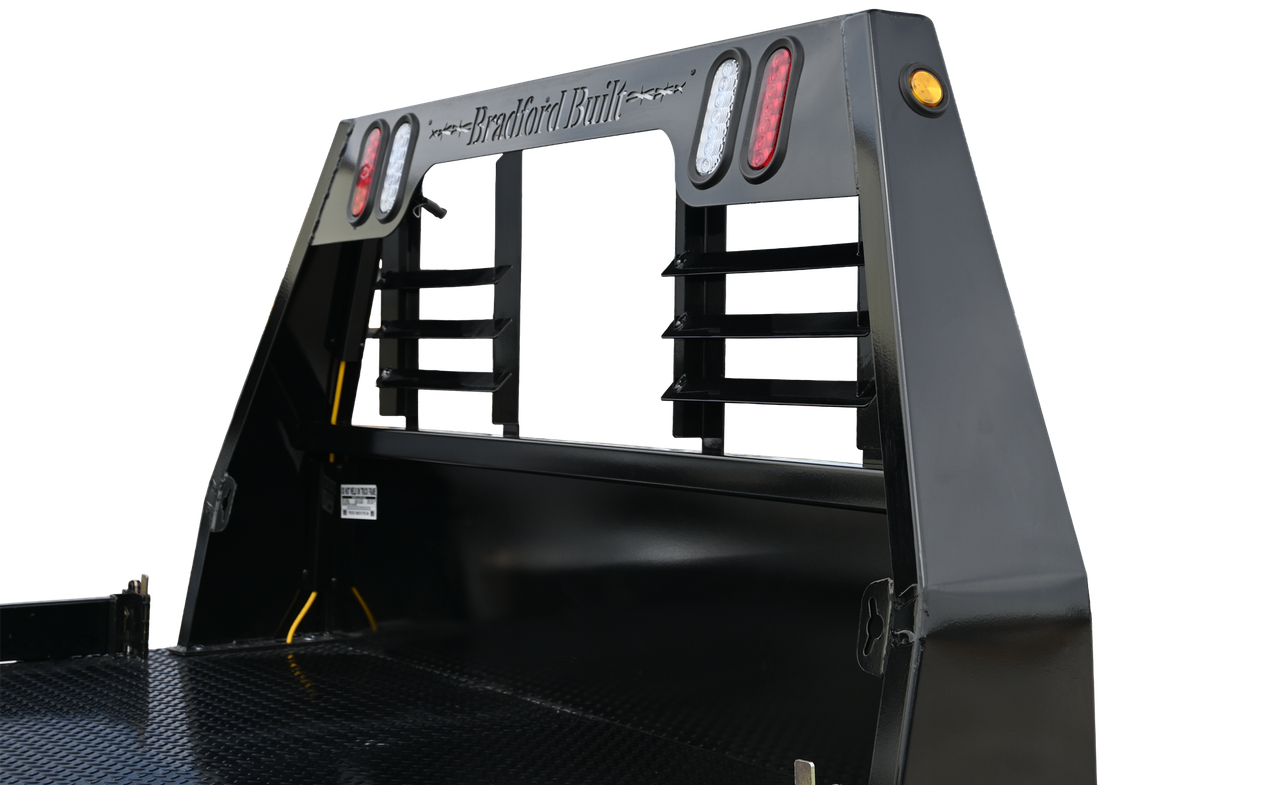

- Formed Headache Rack: A signature Bradford Built look featuring a new bolt-on design for a better paint finish and fitment to your truck cab. It comes standard with stop, reverse, and side marker lights.
- Enhanced Body Styling: Extended deeper skirting gives the bed a more 'finished' and streamlined look. Features built-in Stake Pockets for securing loads or adding custom sides.

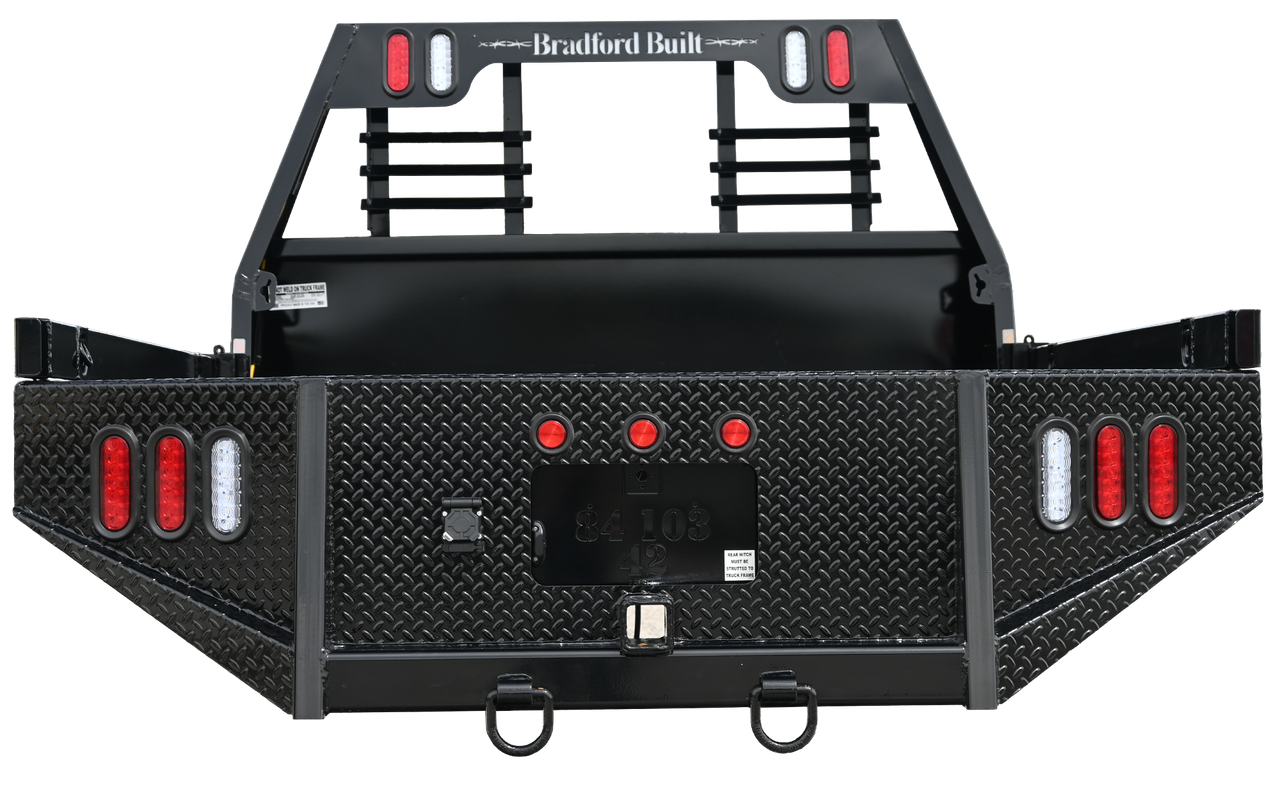

- Electrical & Accessories: Full LED lighting all around, heavy-duty mudflaps, and a fully sealed wiring harness with an integrated 7-pole trailer plug-in box to prevent electrical shorts in wet conditions.
Available Options & Upgrades
Transform the Steel Workbed into a highly organized service platform with optional factory upgrades:
- Toolbox Upgrades: Optional Underbody Toolboxes and Crossbody Toolboxes.
- Towing & Hardware: B&W Turnover Ball, Gooseneck Trough, Fuel Sump, and Rub Rails.
- Rack & Bed Options: Tall Headache Rack, Tube Headache Rack, No Headache Rack, No Rails, Room for pullout box, or Unpainted configurations.
⚠️ Professional In-House Installation
Modern trucks feature highly complex safety and powertrain systems that directly impact upfit requirements. We offer full in-house installation services Monday - Friday in our dedicated service bays.
Whether you require the relocation of factory backup cameras, integration of parking proximity sensors into the rear skirt, or clean routing of Dual-Fuel and DEF tank necks, our technicians ensure your vehicle's systems remain fully operational. Contact our sales staff for an exact quote based on your specific truck make and model year.
Visit Riverside Boot and Saddle in Blackfoot, ID Today
Transform your pickup into a heavy-duty commercial asset. We stock multiple sizes and configurations to get your truck back on the road and working hard. Stop by our lot at 742 ID-39 in Blackfoot, ID, serving the Idaho Falls, Pocatello, and Rexburg communities. Call our flatbed and upfitting experts today at 208-684-4328 to verify inventory, confirm your truck's CTA measurements, and build the perfect Bradford Built Steel Workbed for your fleet!
*Installations are only offered in our facilities. Flatbeds and installation labor are subject to Idaho sales tax. Weights and specifications are approximate and subject to change depending on options.
